Viper Disc
The ideal and preferred choice for efficient and
affective internal tank washing. Powered by the cleaning fluid, the rotating
disc generates a high 360° impingement cleaning effect together with an improved
effective cleaning diameter.
- Smart compact design
- Self lubricating
- Low flow
- High impingement
- Large effective cleaning diameter
- Fast cleaning
- Hygienic construction
- Multiple connections
- Robust construction
- Self cleaning
- Robust construction
- 360° cleaning pattern

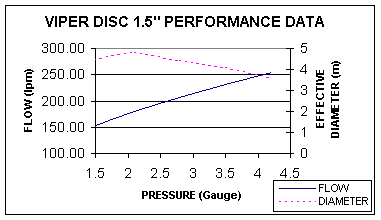

Model 150 (1½")
|
Connection: |
|
1½" BSP x 11 TPI Socket |
|
|
1½" Pipe Pinned Connection |
|
|
DN 40 Pipe Pinned Connection |
|
|
(Others On Request) |
| Material: |
Body: |
SS316 |
|
Bush: |
Carbon / Glass / PTFE |
|
Gaskets: |
PTFE |
| Max Operating Temp |
|
120°C |
| Disc Diameter |
|
70mm |
| Assembly Height |
|
95mm - 105mm |
|
